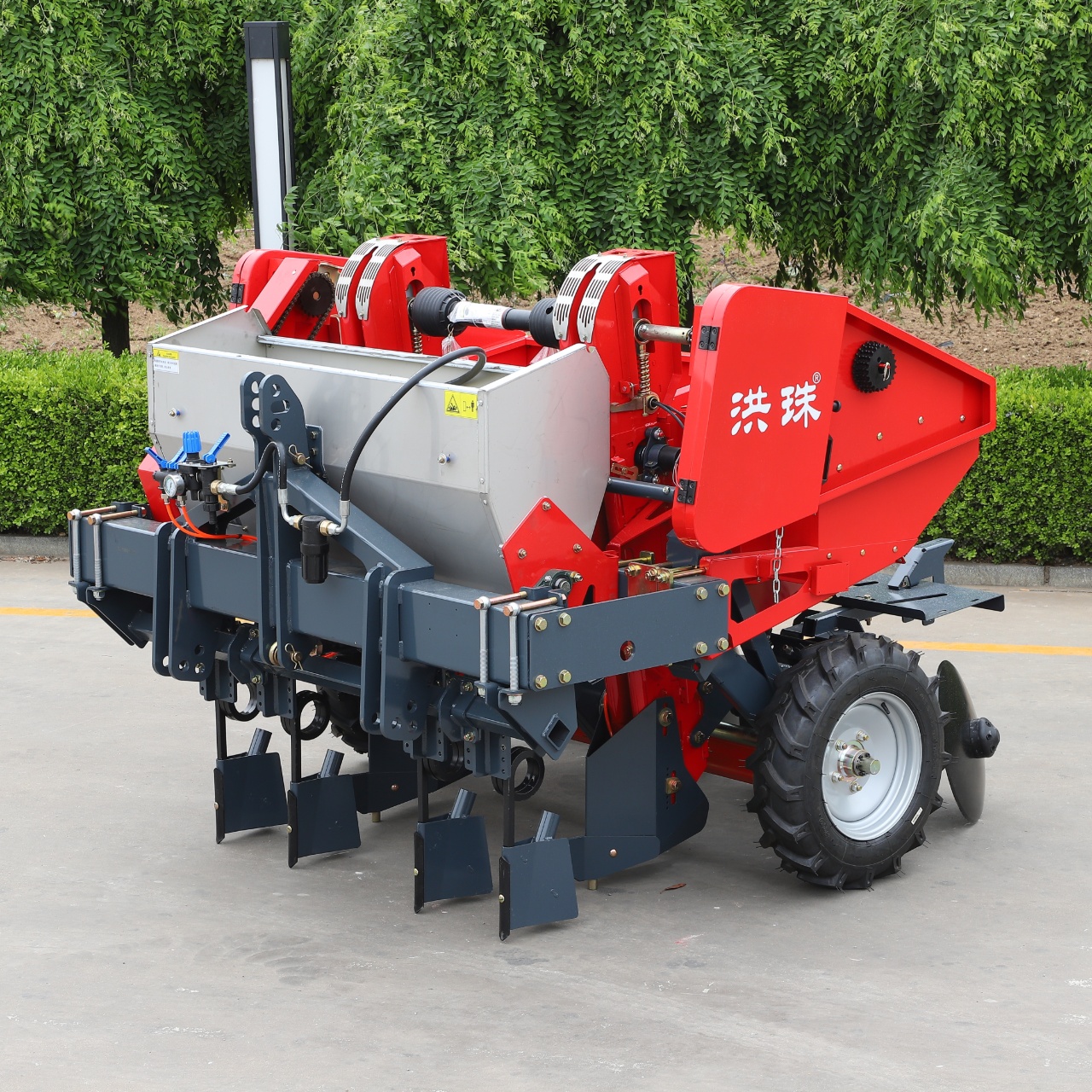

The 2CM-4/4W potato planter is jointly developed by Hongzhu Agricultural Machinery and Qingdao Agricultural University. It is specially designed for large-scale potato planting. This model integrates high compoundness, high precision and high adaptability. Through innovative technologies, it significantly improves the sowing quality and operation efficiency, fully meeting the needs of modern mechanized planting.
- Core advantages
01. Integrated and Efficient Operation
2CM-4W potato planter can complete the whole process of ditching, sowing, fertilizing, ridging, spraying pesticides, and film covering at one time, which greatly reduces labor costs and labor intensity.
Made of high-quality steel, with ridging discs and bearings, it has strong wear resistance, regular ridging shape, and a long service life.
02. Precision Seeding Technology

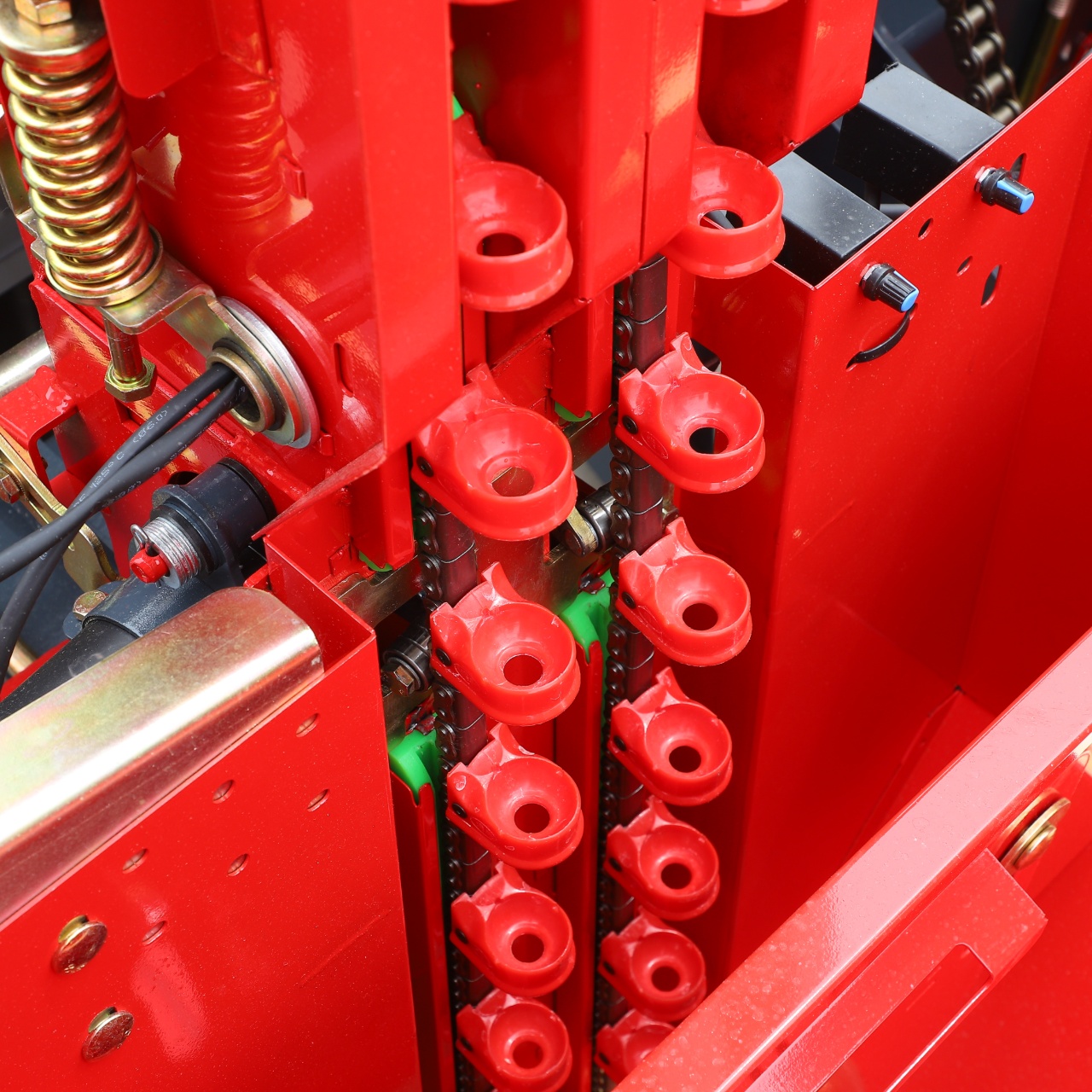

- Adopt a specially developed patented seed-taking spoon. The belt spoon type of the seed metering device is replaceable, and the vibration tensioning mechanism is suitable for all types of seed potatoes. The missed seeding rate is less than 10%, the reseeding is less than 20%, the young sprout damage rate is less than 1.5%, and the spacing qualification rate is ≥85%.
03. Intelligent Depth and Ridging Shape Control
A: Single-unit depth-limiting profiling technology: The single-unit depth-limiting profiling mechanism automatically adjusts the seeding depth, adapts to complex terrains, and ensures uniform depth. It solves the problem of uneven seeding depth caused by factors such as regions and soil qualities, and improves the stability of seeding depth.
B:Potato ridging shape control technology: Adjustable disc ridging device: The row spacing ranges from 700-900mm, the plant spacing ranges from 170-440mm, and the ridging shape can be freely adjusted according to agronomic requirements.
4. Durable Design
- The whole machine is made of high-quality steel, and the accessories are laser-cut independently, with high precision; The key components are made of imported materials, which are wear-resistant and have strong stability.

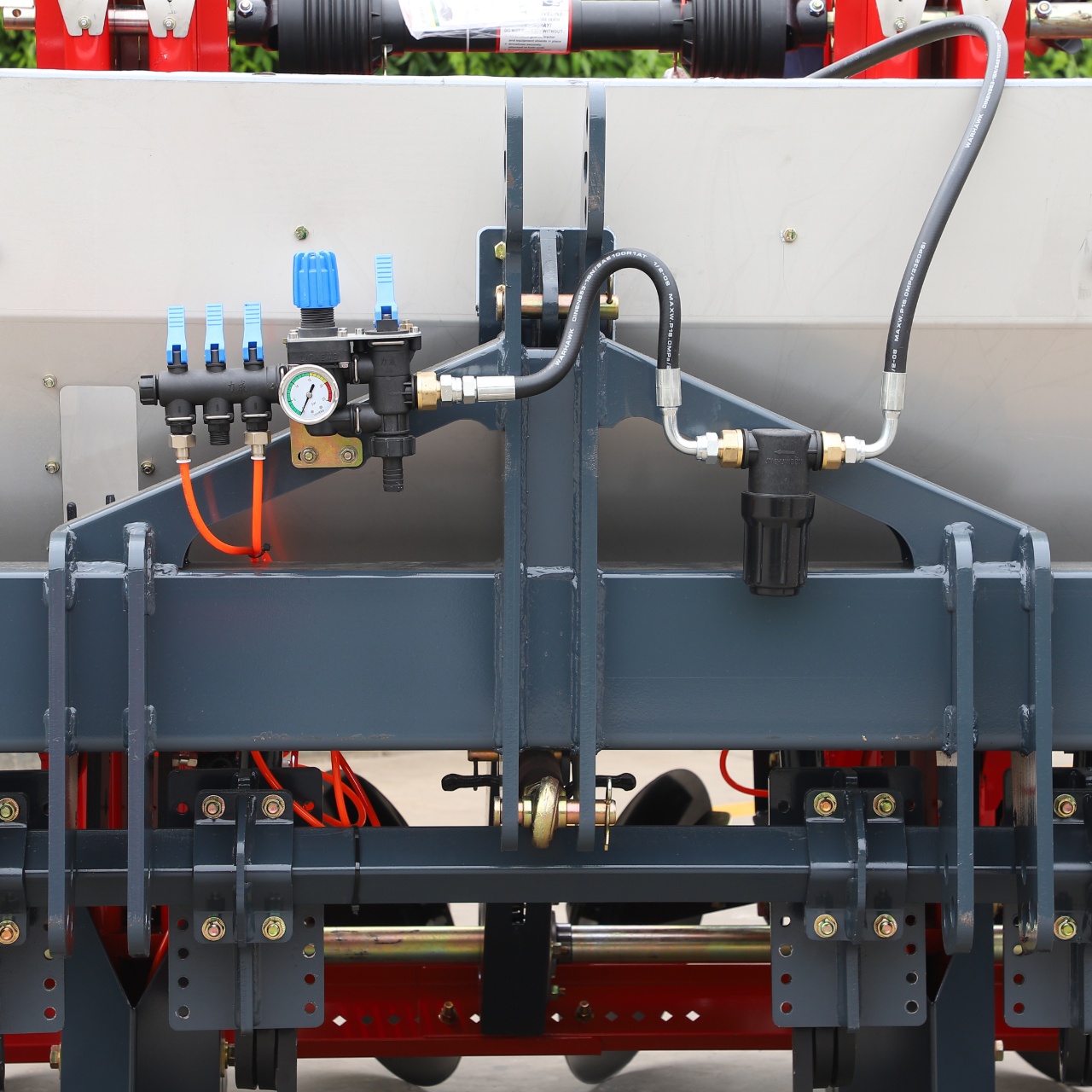

5. Upgraded Spraying System
- Polytetrafluoroethylene(PTFE) atomizing nozzles support two-way spraying in the front and rear directions, with more uniform coverage, and the efficiency of pesticides is increased by 30%.
Serial Number | Item | Serial Number | Parameter Index |
1 | Structural Type | / | Three - point Suspension Type |
2 | Overall Dimensions (Length×Width×Height) | mm | 2700×2000×1650 |
3 | Machine Mass | kg | - |
4 | Matching Power | kW | 73.5 - 117.6 |
5 | Applicable Row Spacing | mm | 800 (Large) / 1000 (Small) |
6 | Number of Working Rows | Row | 4 |
7 | Working Width | mm | 2700 |
8 | Suitable Crops | Type | All Ridge - tillage Crops |
9 | Seeding Type | / | Spoon - type |
10 | Number of Seeders | Unit | 27×4 |
11 | Type of Furrow Opener | / | Double - faced Sharp - corner Type |
12 | Number of Furrow Openers | / | 4 |

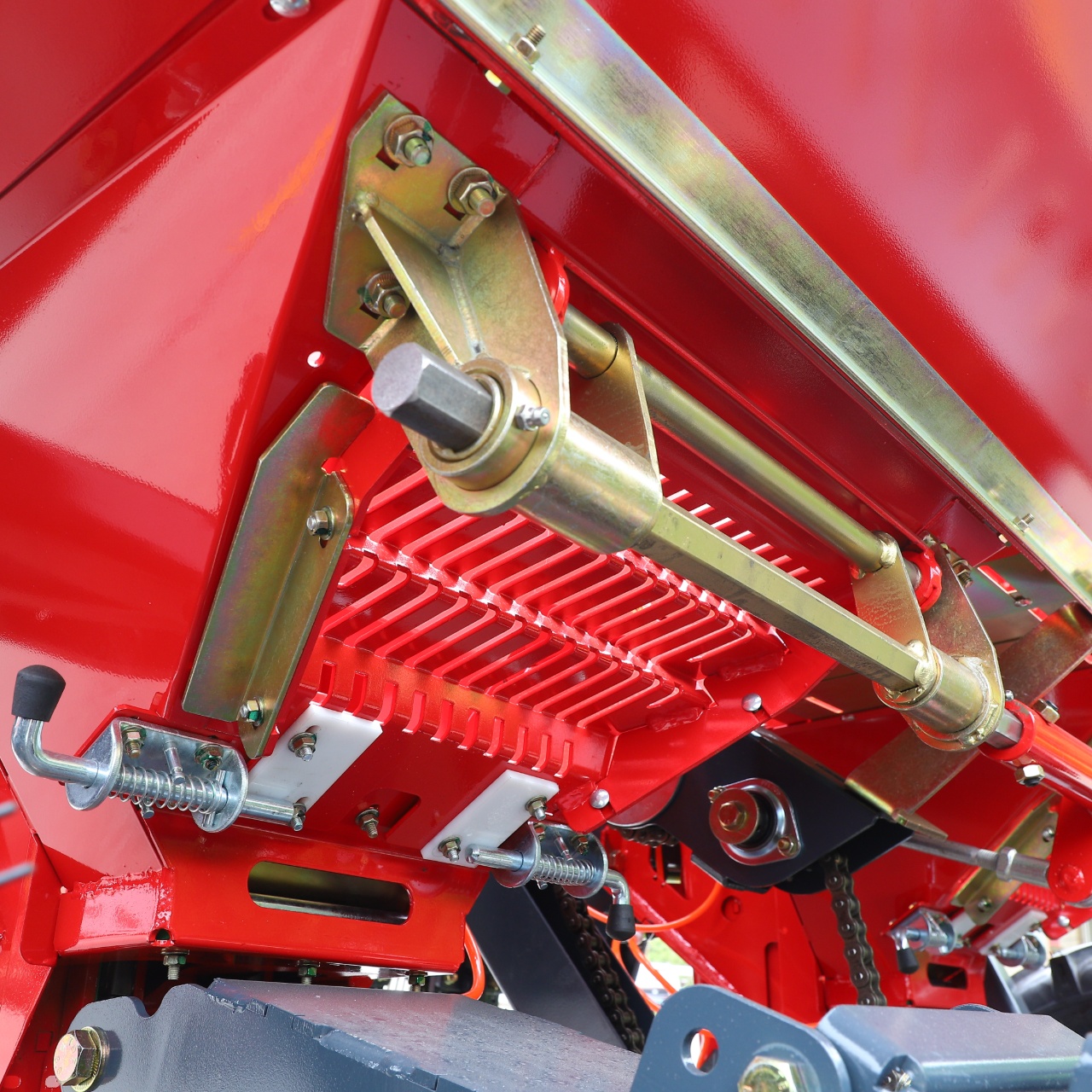

13 | Type of Fertilizer Distributor | / | Road - type Screw Type |
14 | Operating Speed | km/h | 3.5 - 6 |
15 | Productivity in Pure Working Time | hm²/h | 1.2 - 1.8 |
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.
Q2. How is your condition of your agricultural machinery?
A2:Eevery agricultural machinery will have a report test, more than 20 tests are performed on each one, so we guarantee the machines in good condition.
Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.
Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGZHU machines in the local market and supply better service.
Q5.How can I request technical support for optimizing the performance of my machines?
A5: If you need advice on improving the efficiency of your potato planting or harvesting process, contact our technical support team via email or phone. Our experts can provide customized solutions based on your field conditions, crop variety, and machine usage. Additionally, we regularly update our website with tips and best practices for maximizing machine performance.
Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
Q7.How do I order replacement parts for the potato planting and harvesting machines?
A7: You can order genuine replacement parts through our after - sales service team directly. When placing an order, clearly state the machine model, part name, and part number (found in the user manual or on the part itself). We ensure all parts meet high - quality standards and are fully compatible with your equipment. As our spare parts are manufactured by our factory.
